DISCHARGE RATE
0.80-0.90mI/T
1.30-1.50mI/T
Product Description
Item Code.: | AH302 | Tube Length: | Customized |
Nozzle Option: | A/B/C/D/E/F/G/H | Color: | Customized |
Closure Option: | A 28/400 B 28/410 C 28/410(Rechat) D RD28/DIN28 E 28/415 | MOQ: | 10000PCS |
Material: | PP, PE, 304SS, GLASS BALL | Samples: | Available Free |
Discharge Rate: | 0.8-0.9ML/T, 1.3-1.5ML/T | Place of original: | Ningbo, China |
Packaging & Delivery
Carton size: | 64*38*38 (20GP) 56*38*44 (40HQ) | QTY for 20’ container: | 150000PCS
|
Quantity per carton: | 500pcs/ctn | QTY for 40’ container: | 360,000PCS |
Lead Time: | 30-35days | Sea Port: | Ningbo, Shanghai |

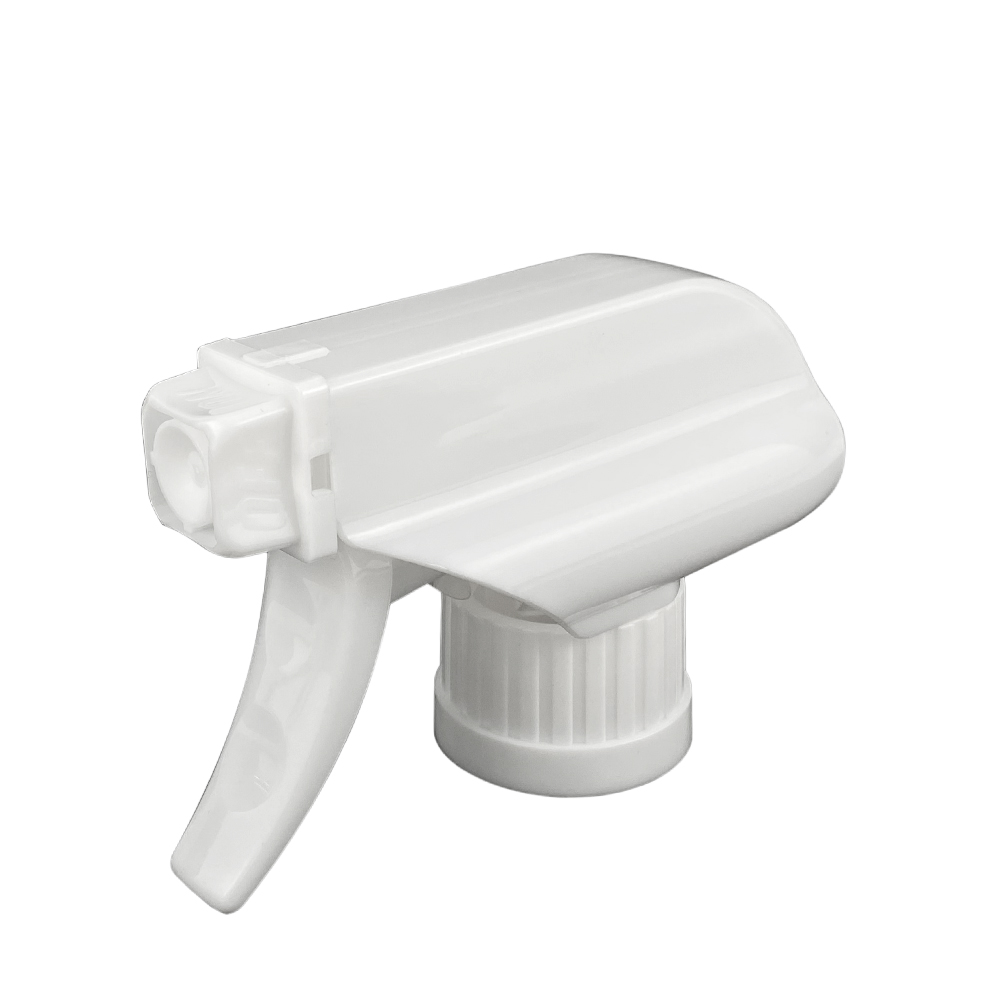

 | PREMIUM TRIGGER SPRAYER AH302 ▃▃▃ DISCHARGE RATE 0.80-0.90mI/T 1.30-1.50mI/T |

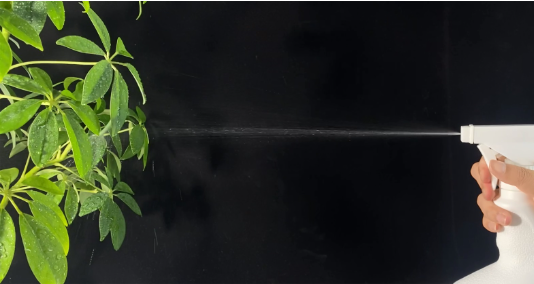

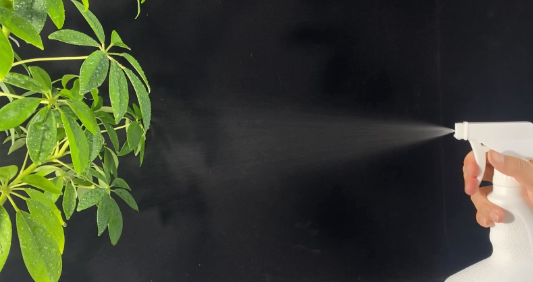

| Spray / Stream |  |
 | Rotating the nozzle to switch the spraying effect |

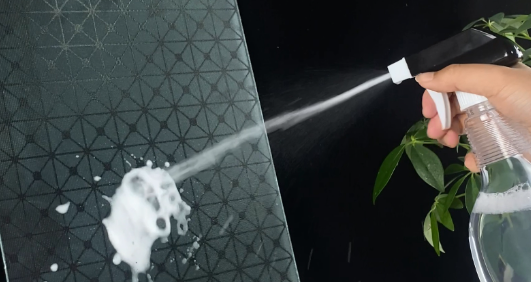

Foam / Spray |  |

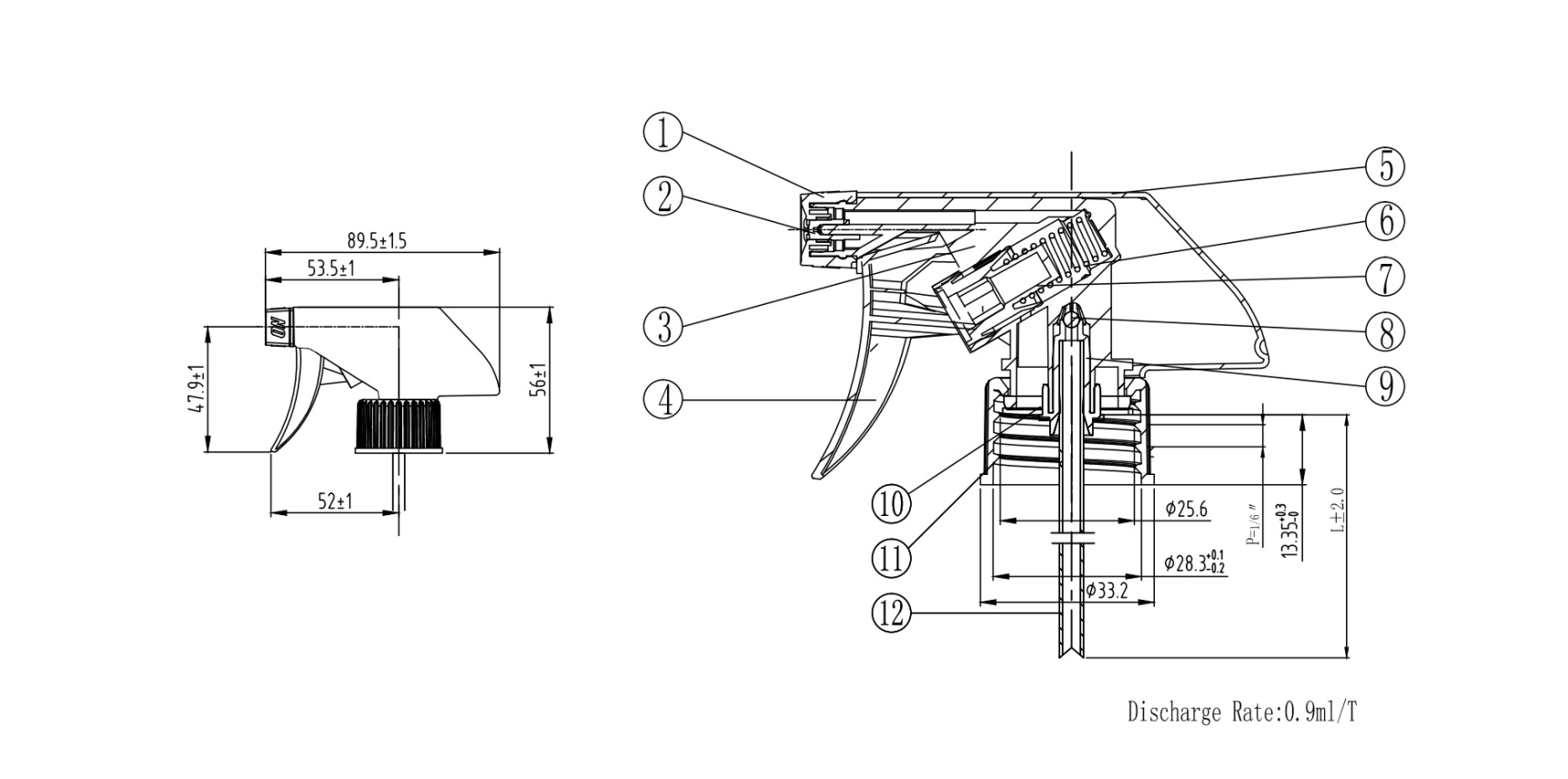

| PRODUCT PARAMETERS | |
 | |
| NO | Component | Material | Specification | QTY |
| 1 | Nozzle | PP | Color for order form | 1 |
| 2 | Spray Valve | LDPE | 1 | |
| 3 | Inner Body | PP | Color for order form | 1 |
| 4 | Trigger | PP | Color for order form | 1 |
| 5 | On Cover | PP | Color for order form | 1 |
| 6 | Spring | SUS304H | 1 | |
| 7 | Piston | HDPE | 1 | |
| 8 | Ball | 304 | φ3.5 | 1 |
| 9 | Bead Seat | PP | Color for order form | 1 |
| 10 | Gasket | PE | φ25*9.5*1.0 thickness | 1 |
| 11 | Closure | PP | 28/410(Color for order form) | 1 |
| 12 | Dip Tube | PP | φ4.6*0.6 thickess | 1 |

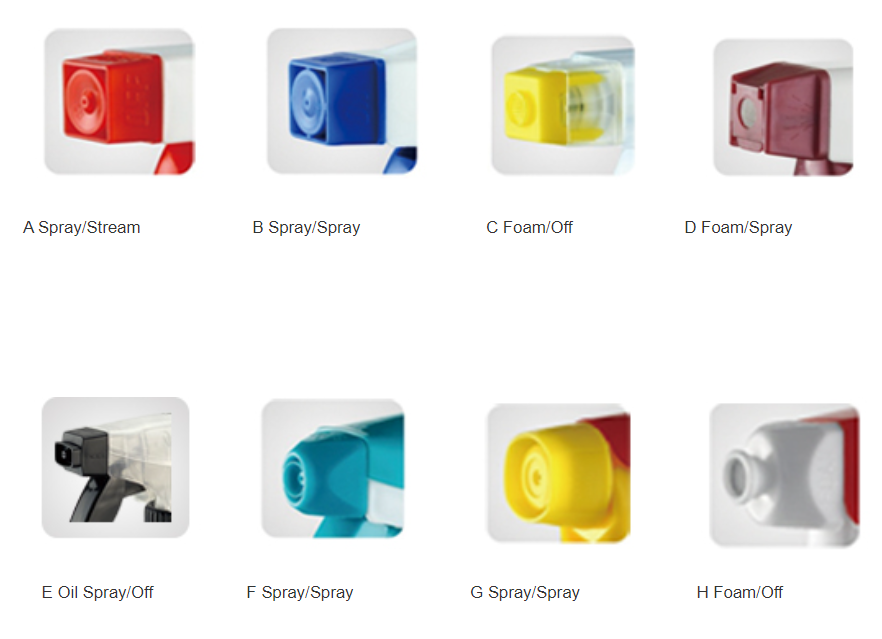

| NOZZLE OPTIONS |
 |

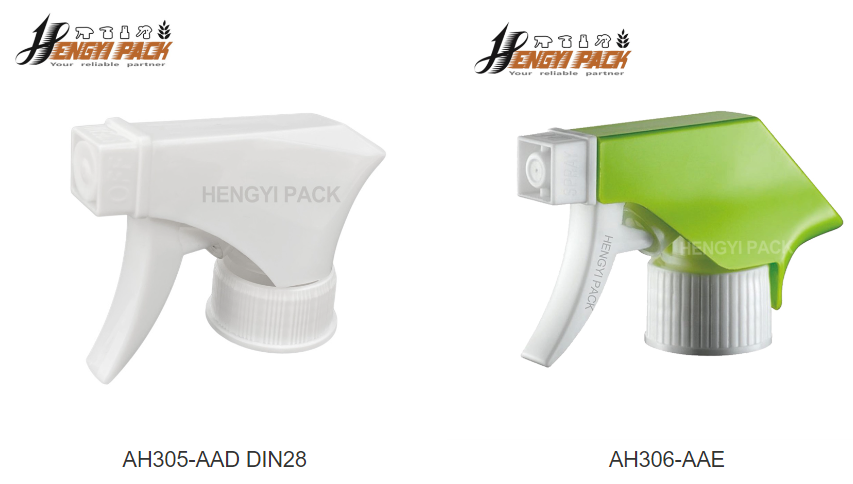

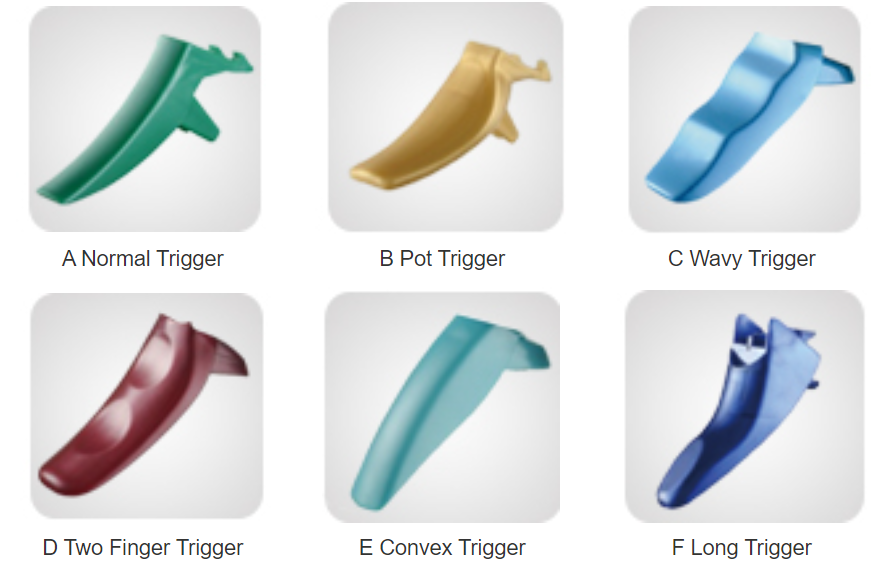

| TRIGGER OPTIONS |
 |

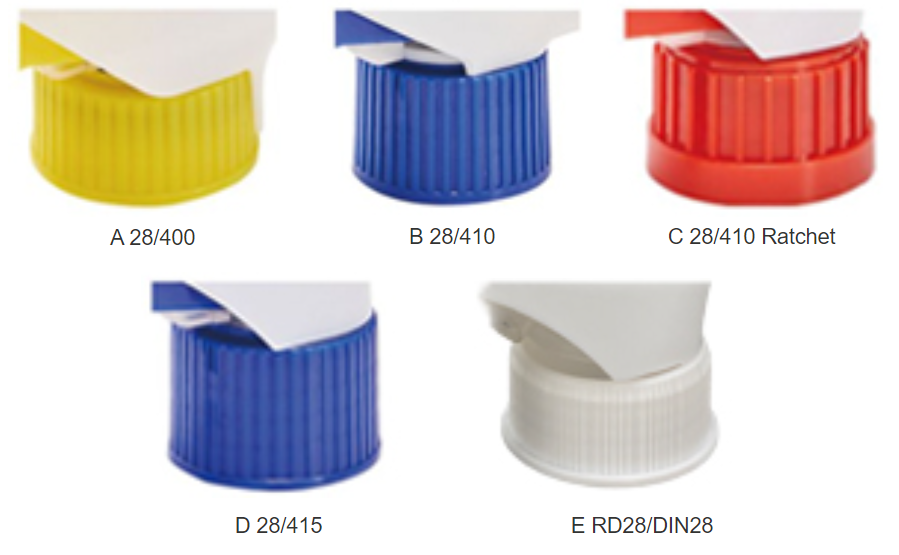

| CLOSURE OPTIONS |
 |

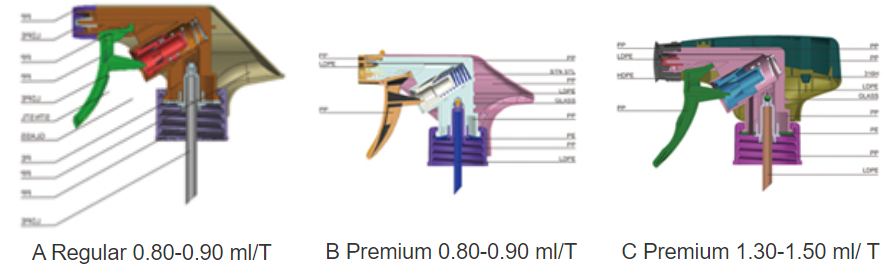

| STRUCTURE & DOSAGE OPTIONS |
 |
| NOZZLE TRIGGER CLOSURES COLOR STRUCTURE & DOSAGEARE CUSTOMIZED |

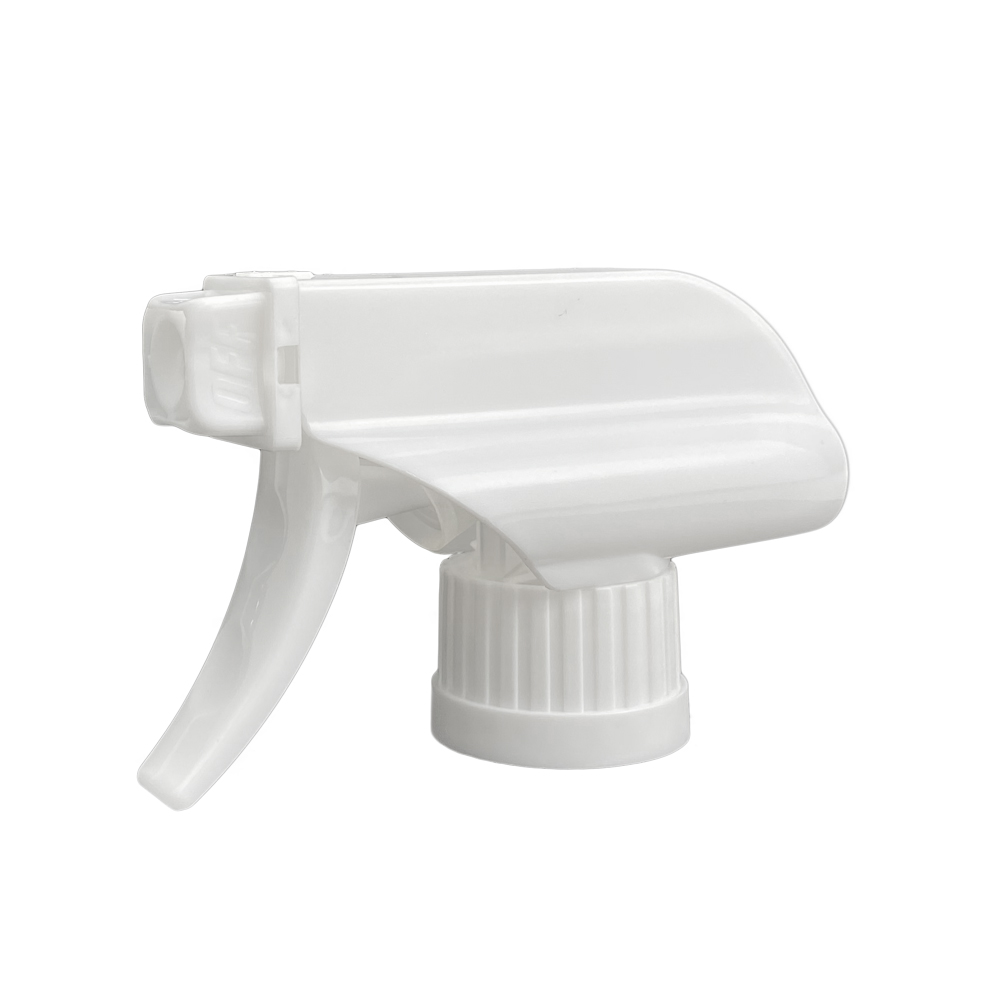

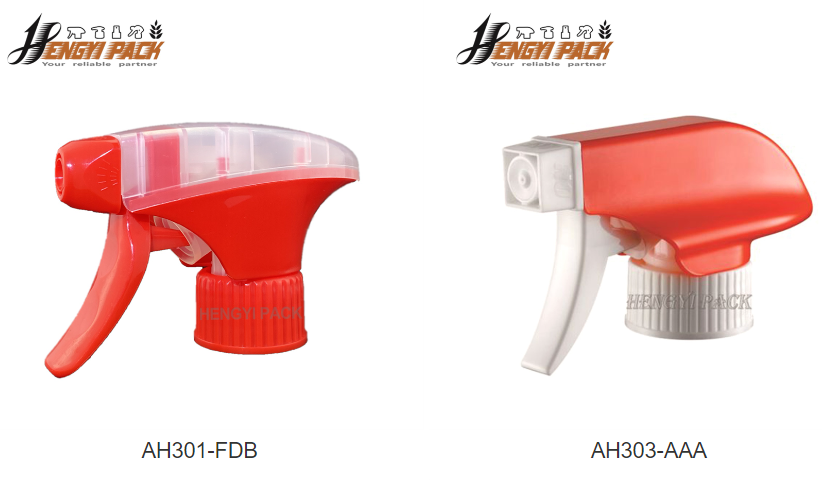

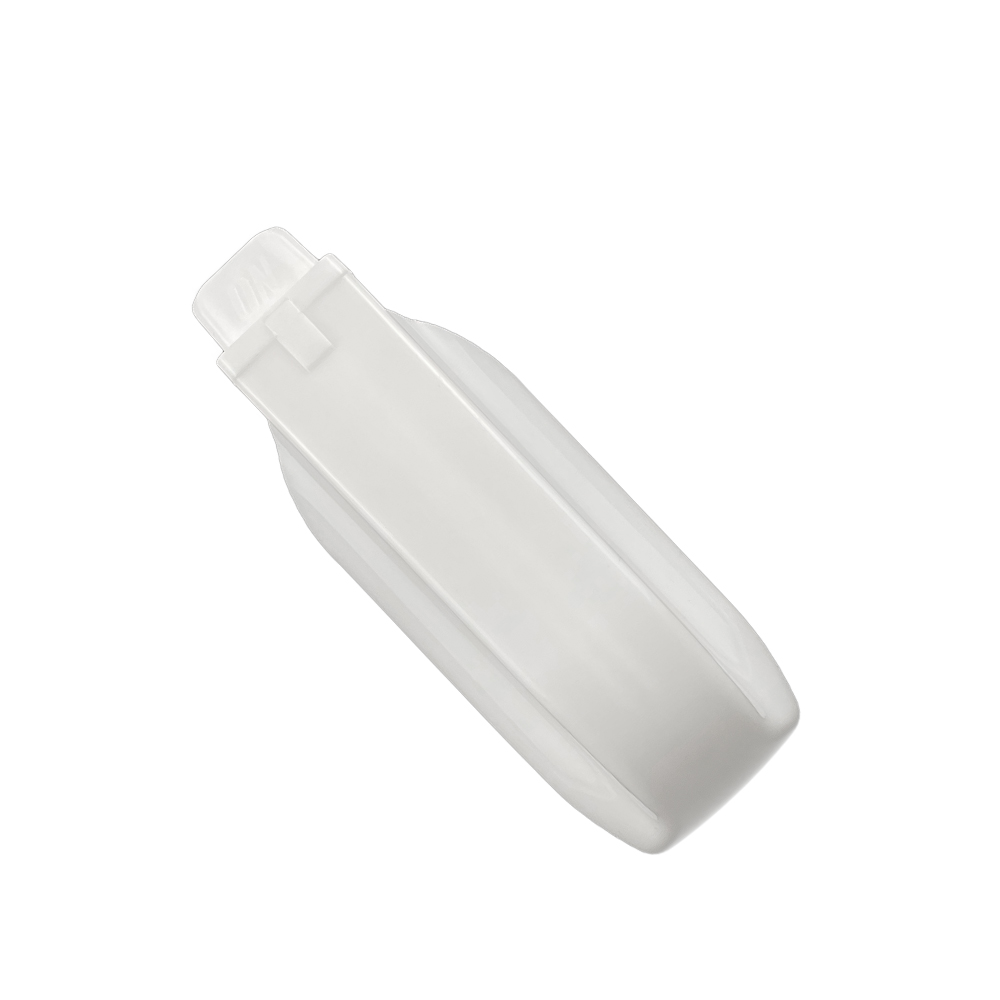

| PRODUCT DISPLAY |
 |
 |
