●Superior spray & stream & foam
●Powerful engine - 1.4ml/T Big dosage
●Good quality and cost-effective
Product Description
Item Code.: | AH201 | Tube Length: | Customized |
Nozzle Option: | A Spray/Stream B Spray/Spray C Foam/Spray | Color: | Customized |
Closure Option: | A 28/400 B 28/410 C 28/410(Rechat) | MOQ: | 10000PCS |
Material: | PP, PE, 304SS, GLASS BALL | Samples: | Available Free |
Discharge Rate: | 1.20-1.40ML/T | Place of original: | Ningbo, China |
Packaging & Delivery
Carton size: | 56*38*38 | QTY for 20’ container: | 182,500PCS
|
Quantity per carton: | 500pcs/ctn | QTY for 40’ container: | 430,000PCS |
Lead Time: | 30-35days | Sea Port: | Ningbo, Shanghai |

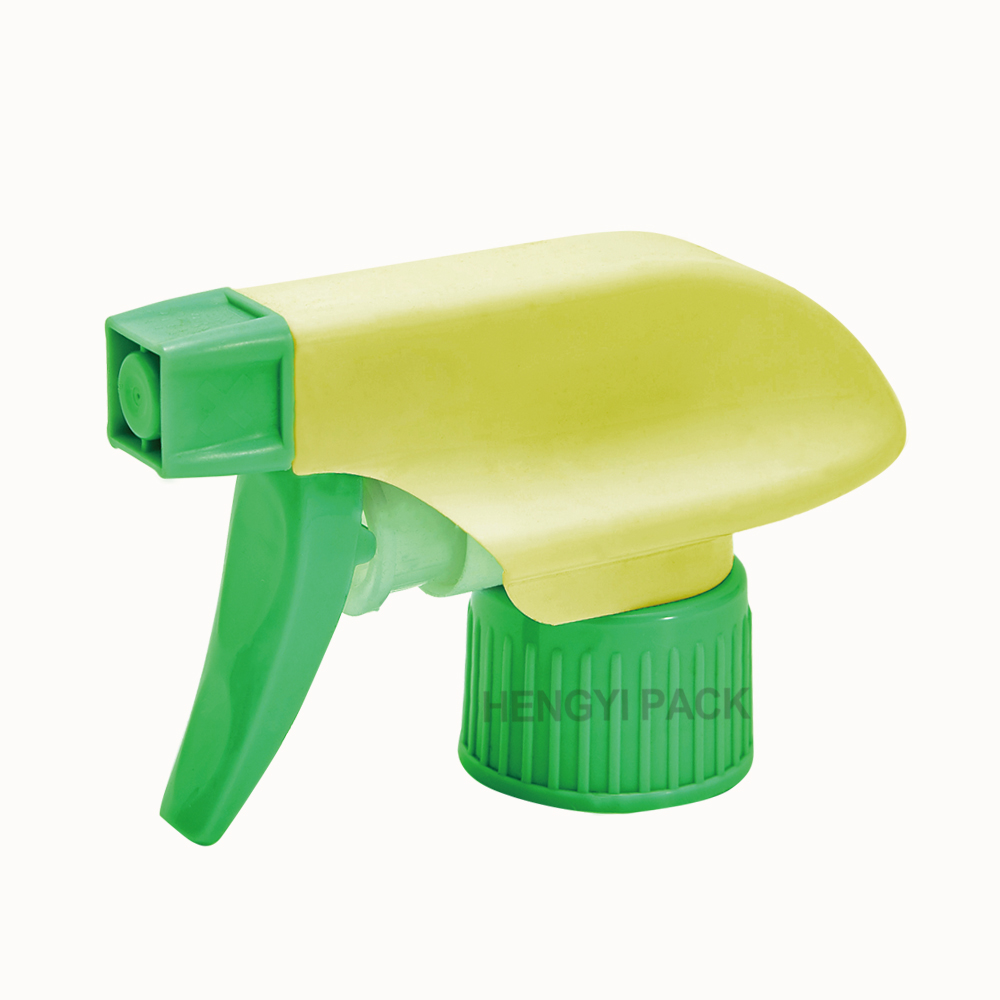

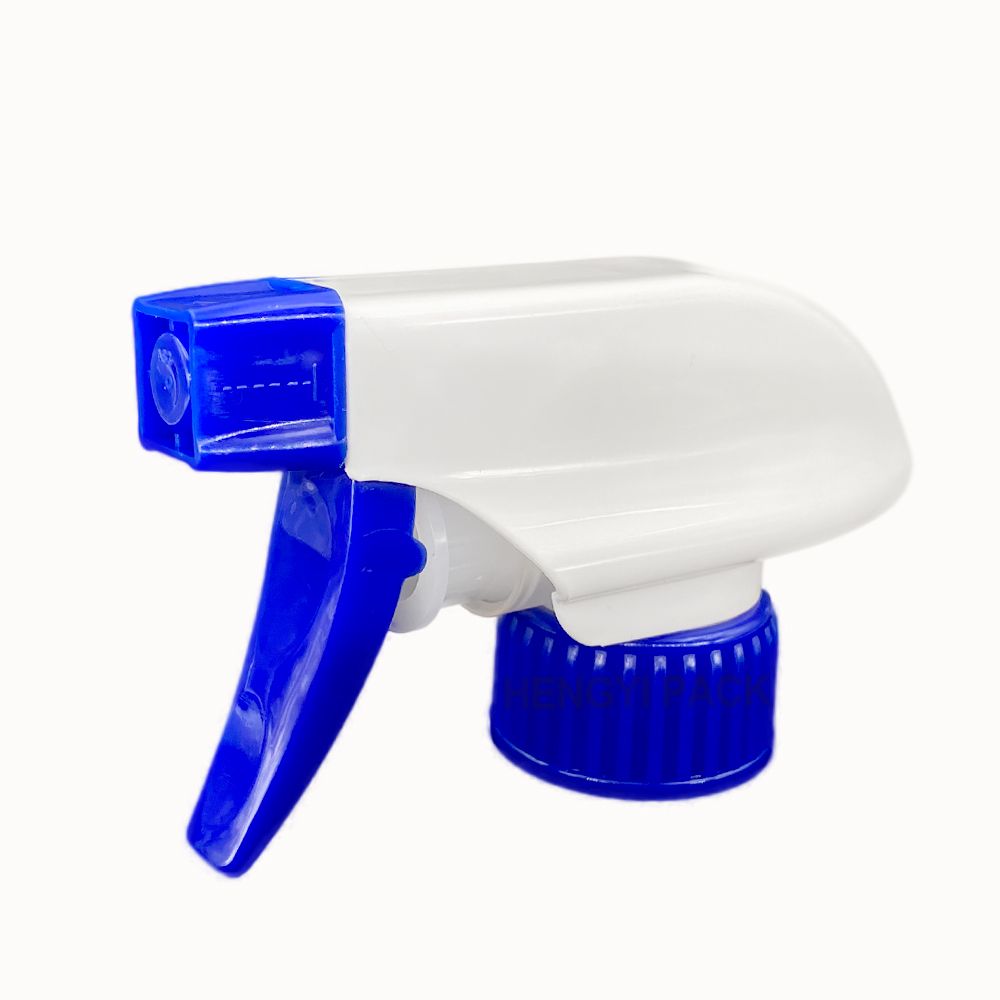

 | PREMIUM TRIGGER SPRAYER AH201 ▃▃▃ ●Superior spray & stream & foam ●Powerful engine - 1.4ml/T Big dosage ●Good quality and cost-effective |

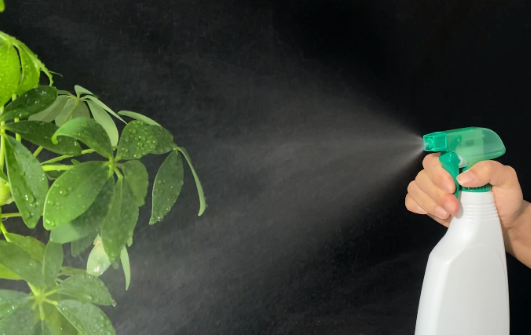

Spray Stream Perfect performance |  |
 | Rotating the nozzle to switch the spraying effect |

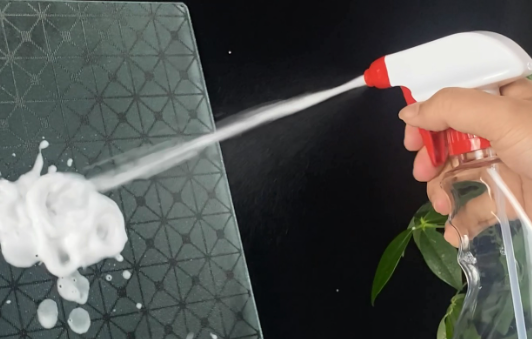

| Foam/Off |  |

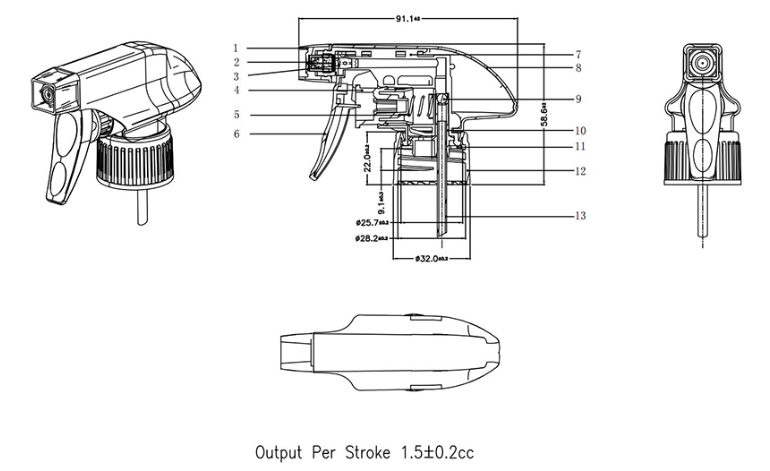

| PRODUCT PARAMETERS | |
 | |
| N0. | PART NAME | MATERIAL |
| 1 | NOZZLE | PP |
| 2 | VALVE | LDPE |
| 3 | VALVE | LDPE |
| 4 | PISTON | HDPE |
| 5 | SPRING | SUS |
| 6 | TIGGER | PP |
| 7 | VALVE BODY | PP |
| 8 | SHROUD | PP |
| 9 | VALVE BALL | GLASS |
| 10 | TUBE RETAINER | PP |
| 11 | GASKET | PE |
| 12 | CLOSURE | PP |
| 13 | DIP TUBE | PP/PE |

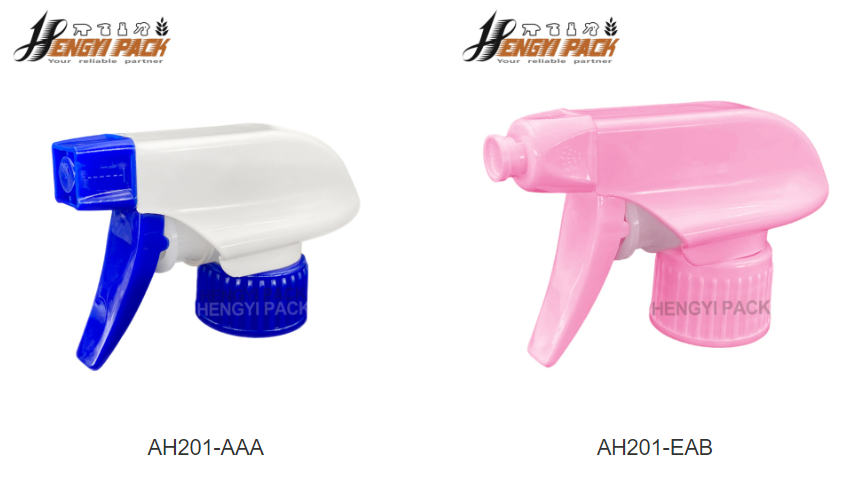

| NOZZLE OPTIONS | |
A Spray/Stream |
E FOAM/OFF |
| TRIGGER OPTIONS | |
A Two Fingers |
B Two Fingers |

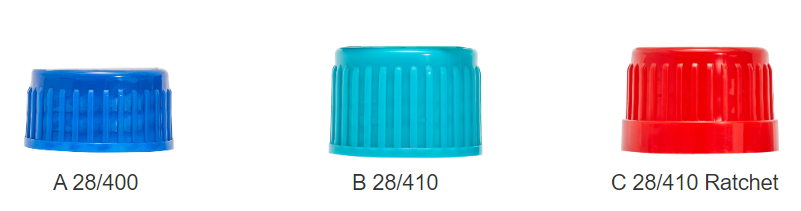

| CLOSURE OPTIONS | |
 | |
| Nozzles, triggers, closures, colors can be customized | |

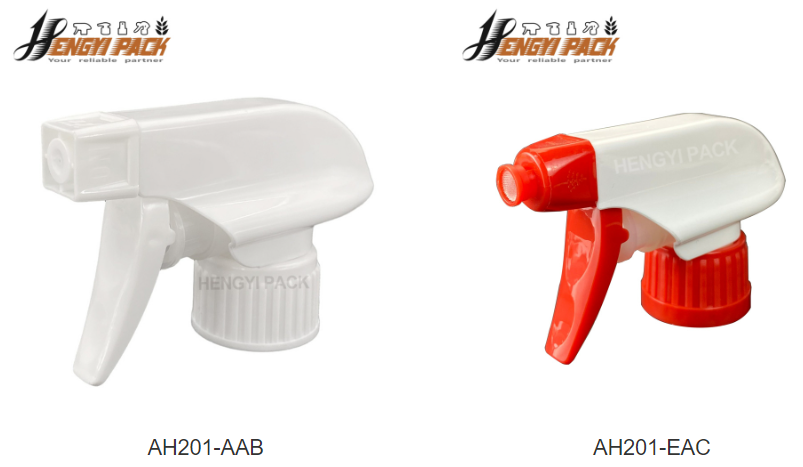

| PRODUCT DISPLAY | |
 | |
 | |
For more pictures and video information, please contact us: | |
