without dis-assembly
●Outer plastic spring - corrosion resistant,
avoid the risk of spring contamination
●Output: 0.15ml/T
Product Description
Item Code.: | AHMS502 | Tube Length: | Customized |
Neck Option: | RIBBED SMOOTH | Color: | Customized |
Closure Option: | A 18/410 B 20/410 C 24/410 D 28/410 | MOQ: | 10000PCS |
Material: | PP | Samples: | Available Free |
Discharge Rate: | 0.12-0.15ML/T | Place of original: | Ningbo, China |
Packaging & Delivery
Carton size: | 55*38*49 (20GP) 55*38*49 (40HQ) | QTY for 20’ container: | 750,000PCS |
Quantity per carton: | 2500pcs/ctn | QTY for 40’ container: | 1,650,000PCS |
Lead Time: | 30-35days | Sea Port: | Ningbo, Shanghai |

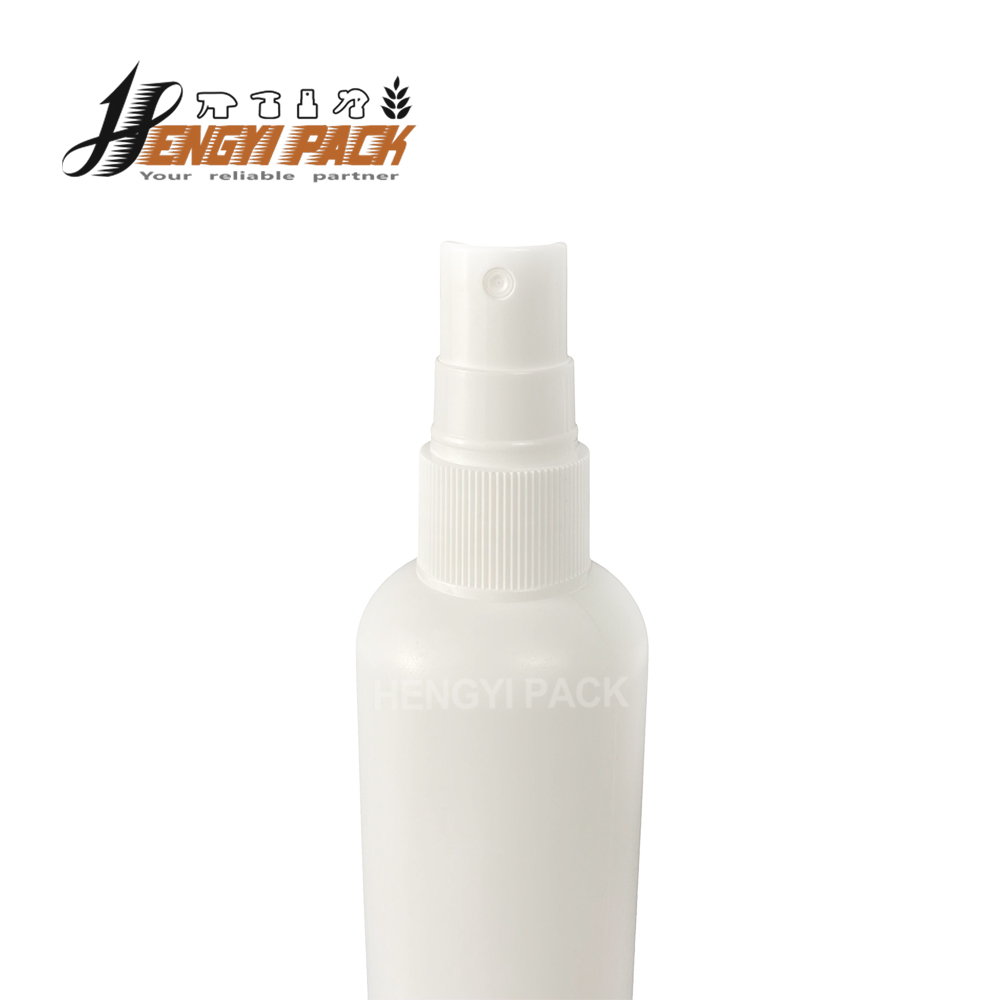

 | ALL PLASTIC Mist Sprayer AHMS502 ▃▃▃ without dis-assembly ●Outer plastic spring - corrosion resistant, avoid the risk of spring contamination ●Output: 0.15ml/T |

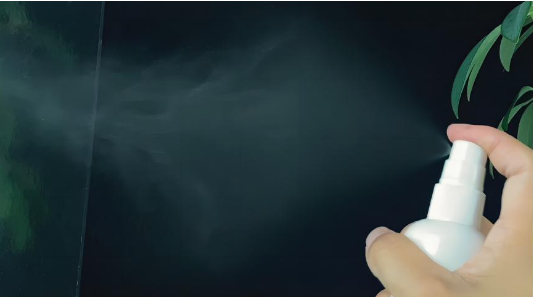

| Surper fine mist spray |  |

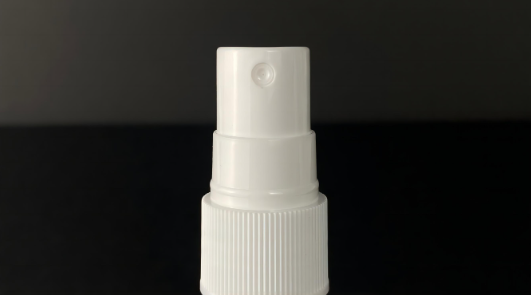

 | Spray sheet detail |

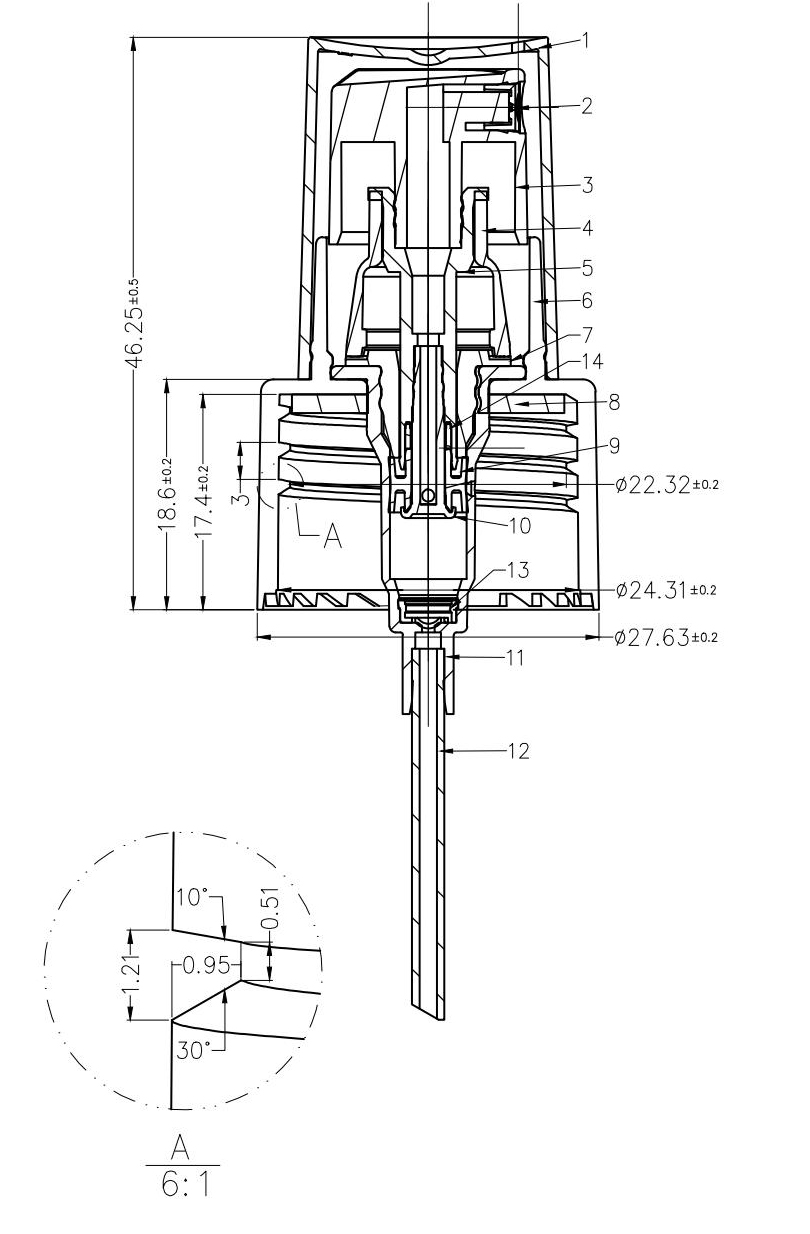

| PRODUCT PARAMETERS | |
 | |
| NO | Name of Parts | Material | Quantity |
| 1 | Hood | PP | 1 |
| 2 | Spray piece | PP | 1 |
| 3 | Actuator | PP | 1 |
| 4 | Spring | PE | 1 |
| 5 | Spring seat | PP | 1 |
| 6 | Threaded ring | PP | 1 |
| 7 | Connector | PP | 1 |
| 8 | Sealing ring | PE | 1 |
| 9 | Piston | PE | 1 |
| 10 | Needle valve | PE | 1 |
| 11 | Housing | PP | 1 |
| 12 | Suction pipe | PE | 1 |
| 13 | Valve plates | PE | 1 |
| 14 | Elastic block | PE | 1 |

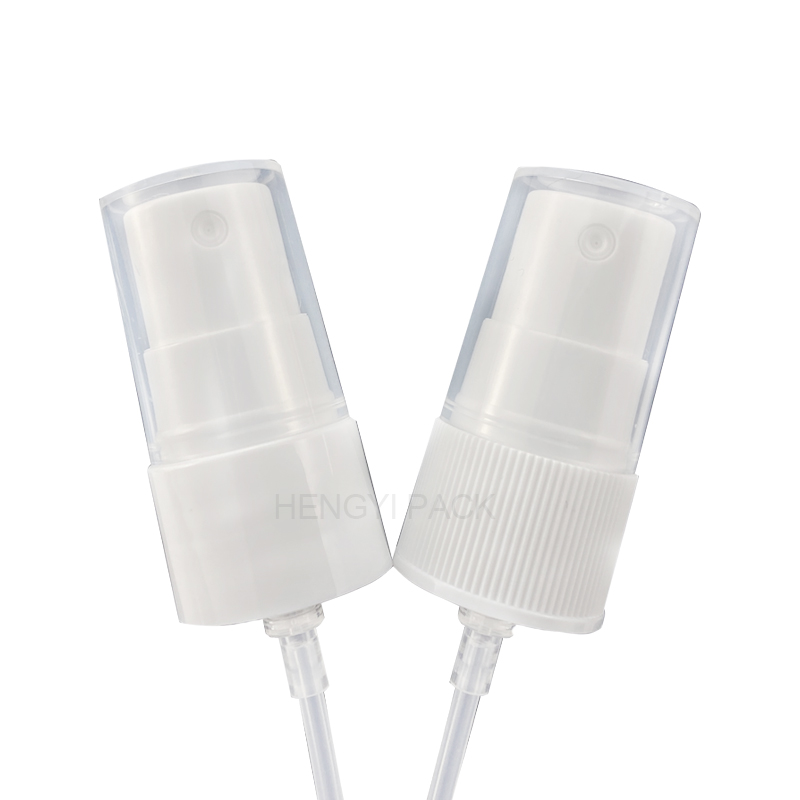

| NECK OPTION | |
A Smooth |
B Ribbed |
| CLOSURE OPTIONS | |
A 18/410 |
B 20/410 |
C 24/410 |
D 28/410 |
| Necks, closures, colors can be customized | |

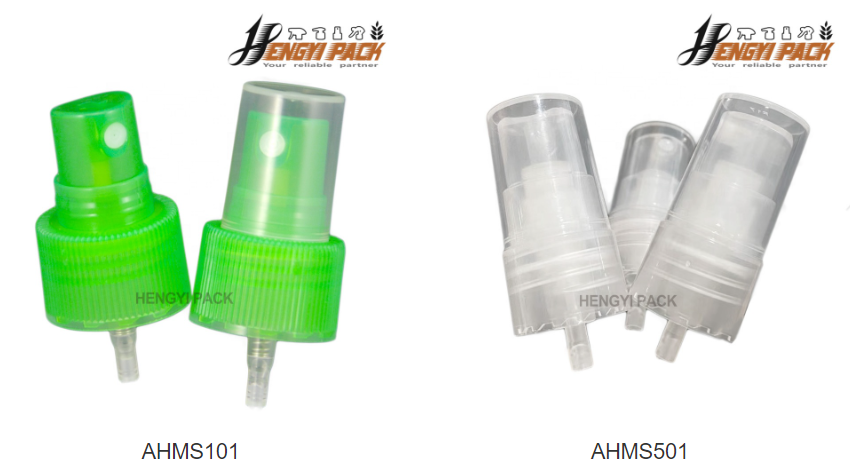

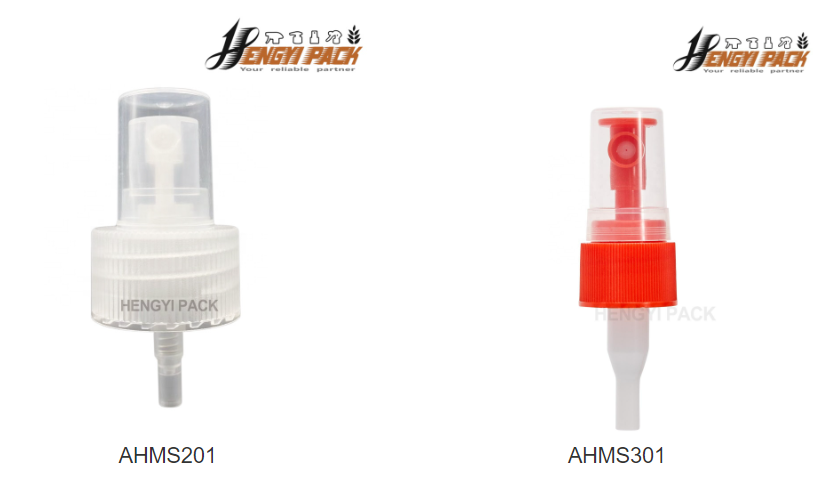

| PRODUCT DISPLAY | |
 | |
 | |
For more pictures and video information, please contact us: | |
