Product Description
Item Code.: | AH103 | Tube Length: | Customized |
Nozzle Option: | A Spray/Stream B Spray/Spray | Color: | Customized |
Closure Option: | A 28/400 B 28/410 C 28/410 (Ratchet) | MOQ: | 10000PCS |
Material: | PP, PE, POM | Samples: | Available Free |
Discharge Rate: | 1.2-1.4ML/T | Place of original: | Ningbo, China |
| Carton size: | 57*38*44cm | QTY for 20’container: | 155,000PCS |
| Quantity per carton: | 500pcs/ctn | QTY for 40’container: | 366,000PCS |
| Lead Time: | 30-35days | Sea Port: | Ningbo, Shanghai |

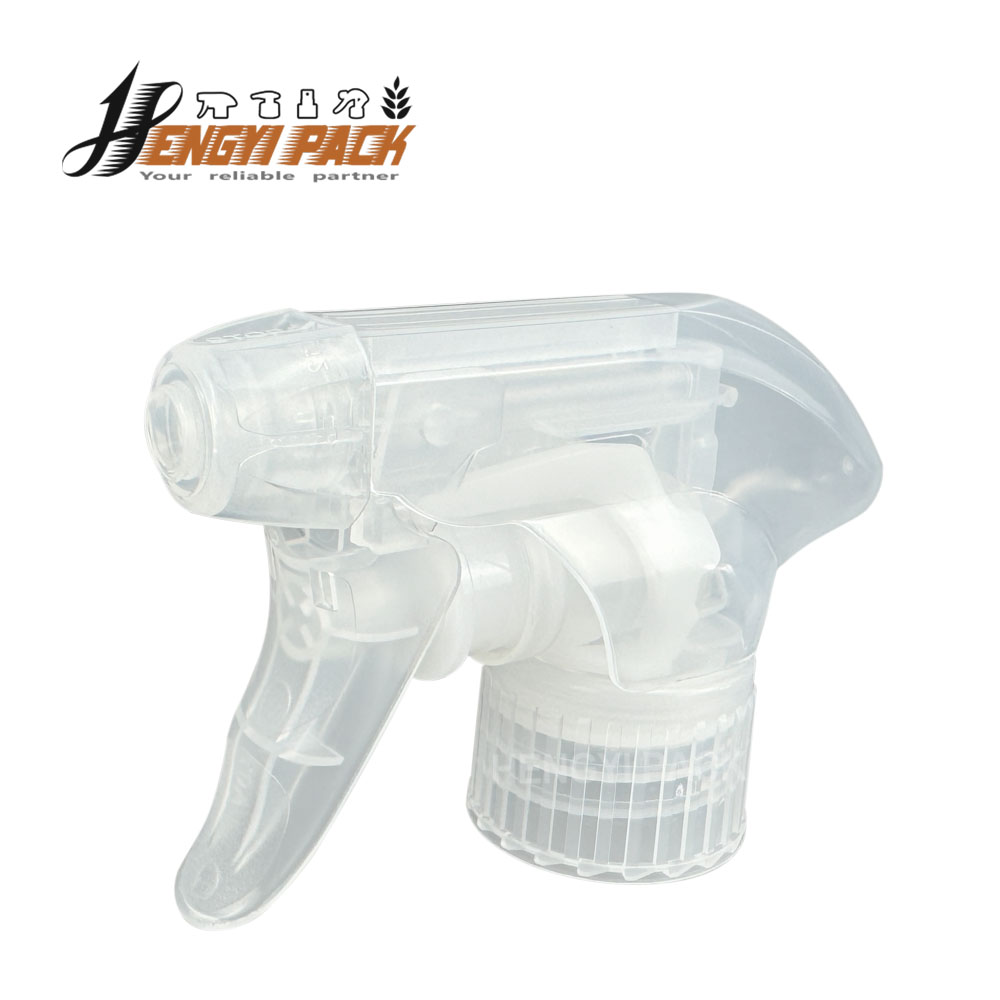

| ALL PLASTIC TRIGGER SPRAYER AH103 ▃▃▃ |
● All-plastic structure - 100% recyclable without dis-assembly ● Outer plastic spring - corrosion resistant avoid the risk of spring contamination ● Universal joint connection - leakproof | |
| |
Rotating the nozzle to switch the spraying effect |  |

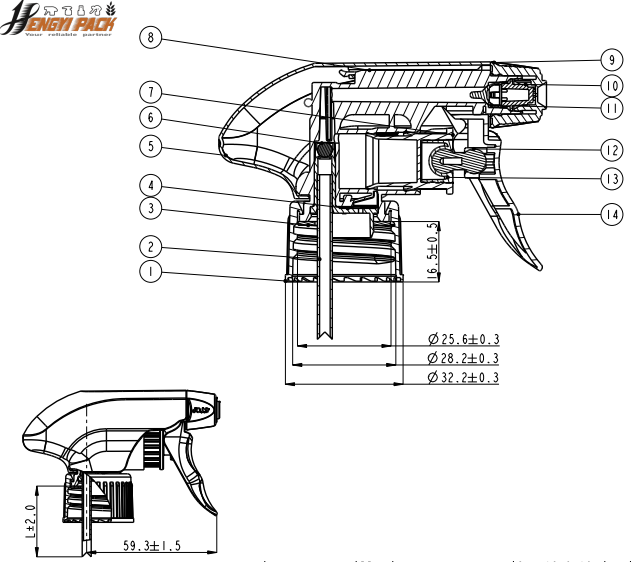

| PRODUCT PARAMETERS | |
 | |
| NO | Component | Material | Specification |
| 1 | Closure | PP | Color for order fom |
| 2 | Dip Tube | PP | |
| 3 | Gasket | PE | Color for order fom |
| 4 | On Cover | PP | Color for order fom |
| 5 | Outer Cover | PP | |
| 6 | Plastic ball | POM | |
| 7 | Piston | PE | Color for order fom |
| 8 | Body | PP | Color for order fom |
| 9 | Nozzle | PP | |
| 10 | Diversion head | LDPE | |
| 11 | Valve | EVA | |
| 12 | Piston connecting rod | PP | |
| 13 | Piston connecting seat | PP | |
| 14 | Trigger | PP | φ04.0*0.8 thickess |

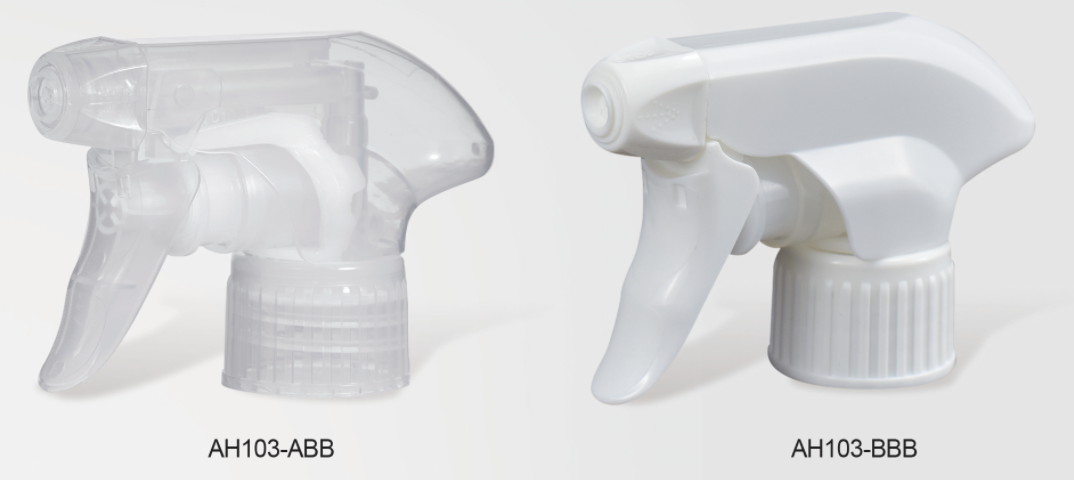

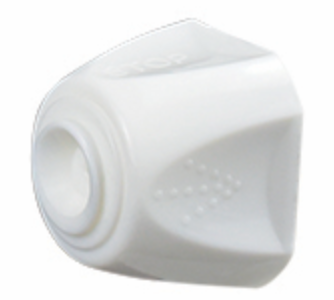

| NOZZLE OPTIONS | |
A Spray/Stream |
B Spray/Spray |
| TRIGGER OPTIONS | |

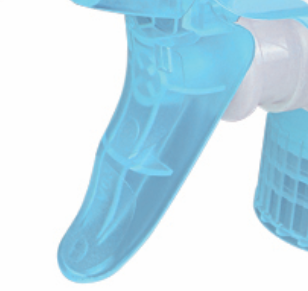

B Two Fingers | |

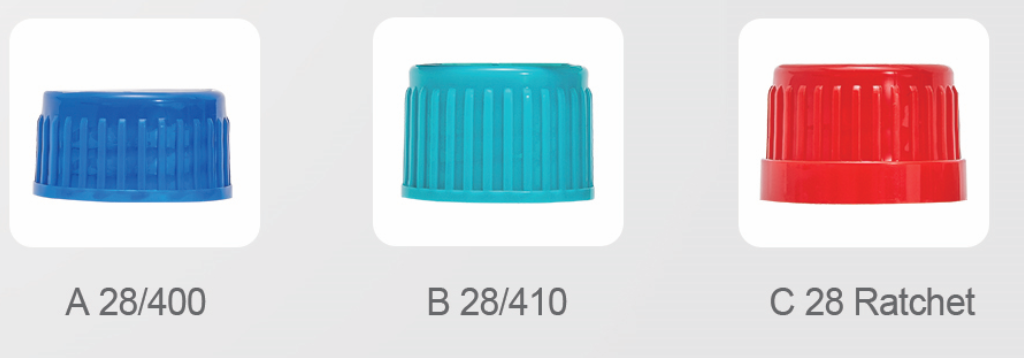

| CLOSURE OPTIONS | |
 | |
| Nozzles, triggers, closures, colors can be customized | |

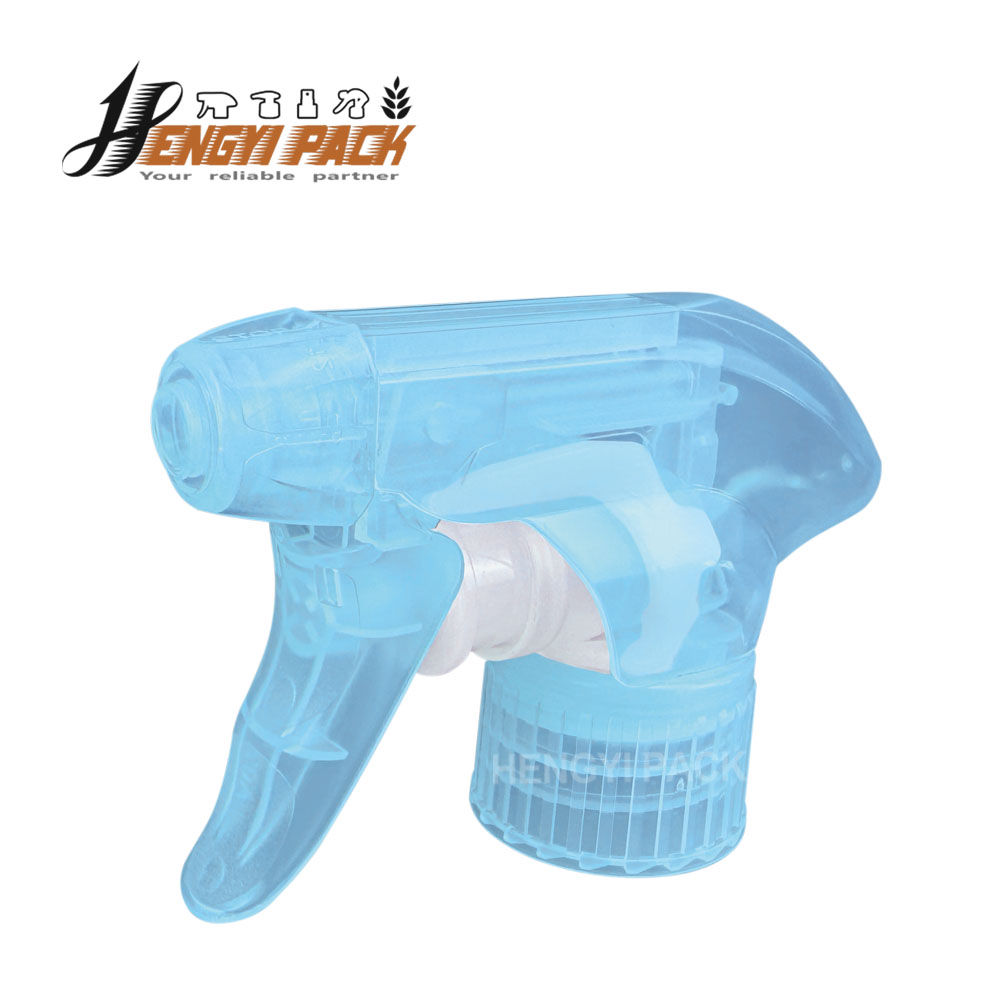

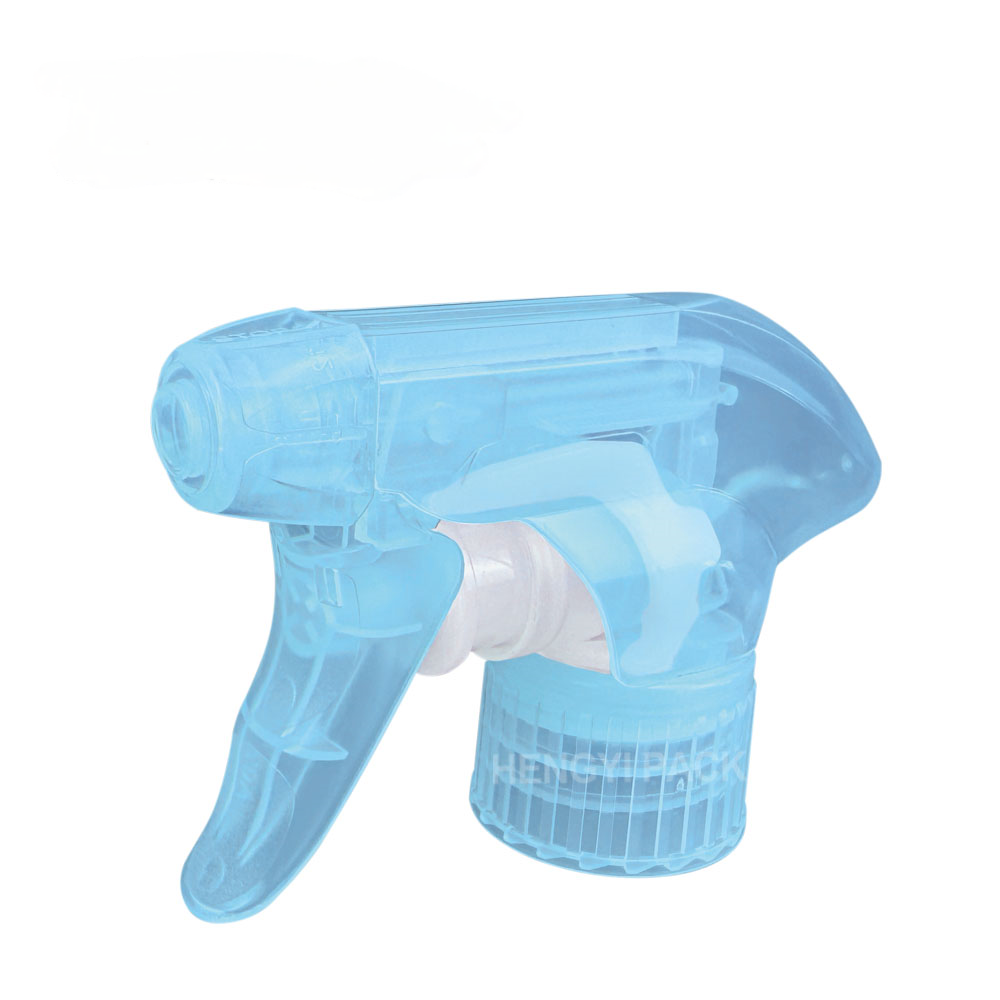

| PRODUCT DISPLAY | |
 | |
For more pictures and video information, please contact us: | |
